Description

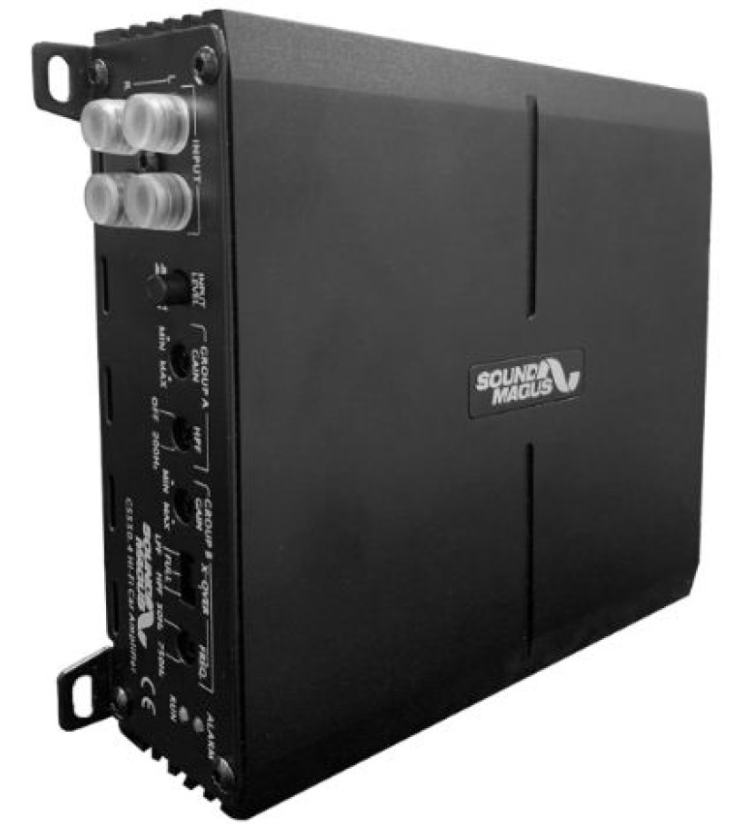

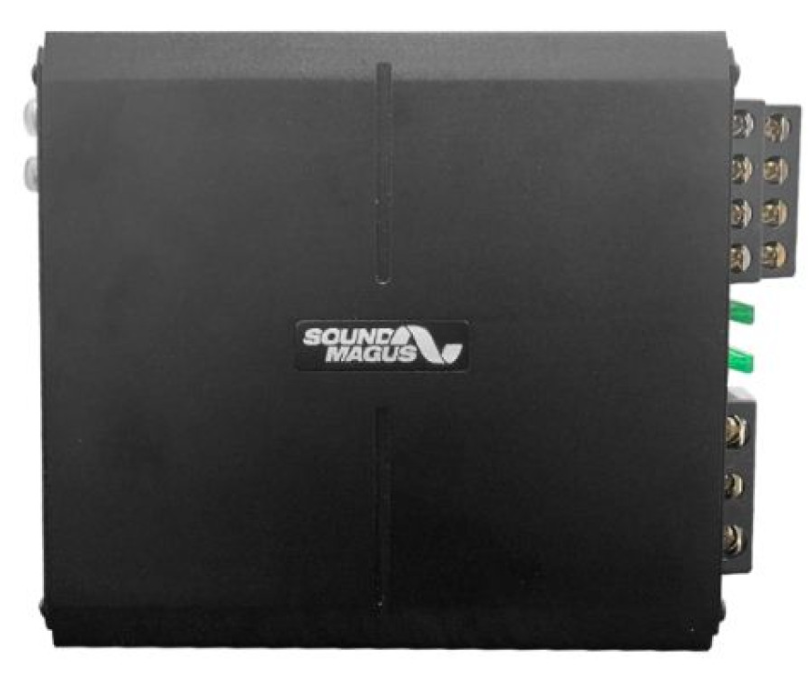

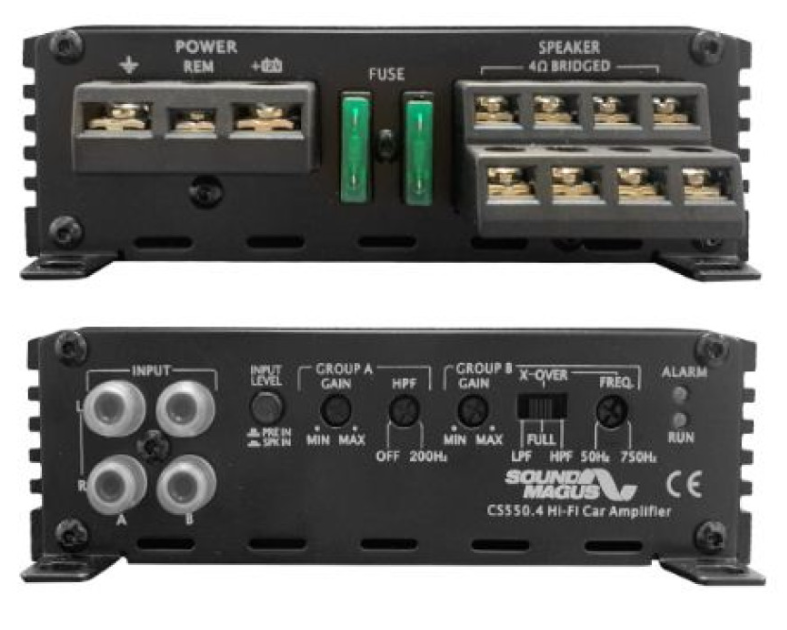

CS550.4 High Power Full Range Class D Power Amplifier – CHAMPION SERIES
• High power full range class D power amplifier
• Large capacity electrolytic capacitor; N-MOS high current high efficiency switching power supply
• 2ohm stereo or 4ohm bridged mode
• High pass filter adjustable from 50 – 750Hz; Low pass filter adjustable from 50 – 750Hz
• Low level input sensitivity: 0.35V – 3.5V
• High level input sensitivity: 0.7V – 7V
• Overheat, overload, short circuit
• Operating Voltage: 7.5V – 16V
| 2 ohms: | 130w RMS x 4CH |
| 4 ohms: | 80w RMS x 4CH |
| 4 ohms Bridged: | 260w RMS x 2CH |
| Frequency response: | 10Hz-30KHz |
| Group A: | HPF off-200Hz |
| Group B: | FULL/HPF/LPF Variable 50 to 750Hz |
| Input: | High and low impedance input |
| Type: | 4 Channel Amplifier |
